Prof Blair & Associates - 4stHEAD: Valve & Duct Design

			4stHEAD

			Valve and Duct Design
*Software designed by engineers for engineers*			Valve and Duct Design

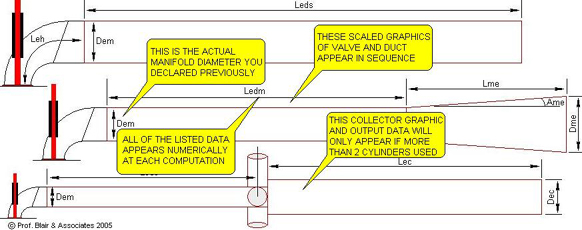

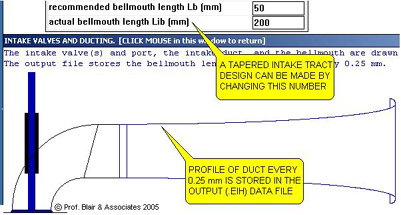

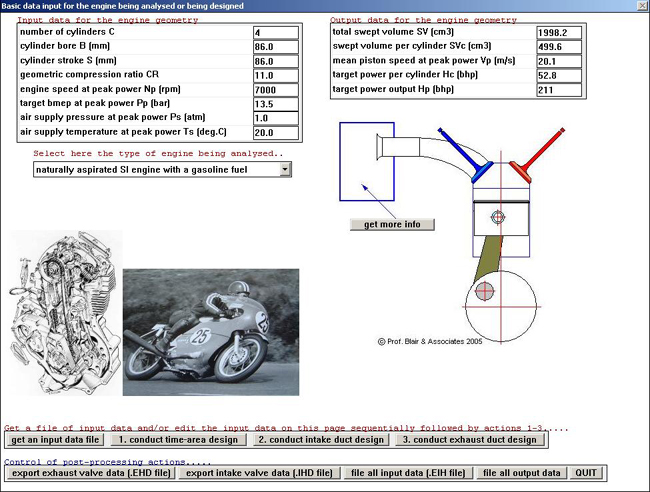

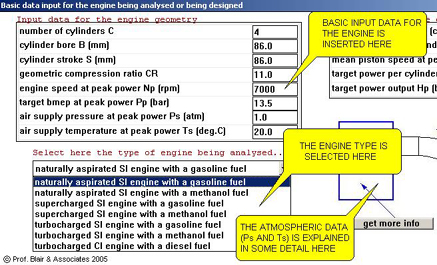

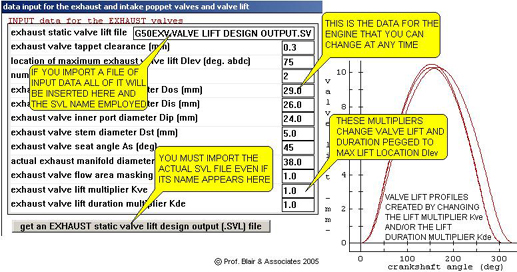

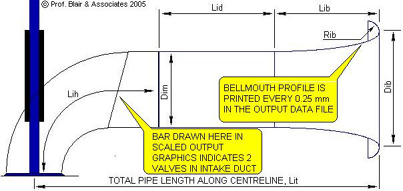

Home The Associates 4stHEAD Valve Lift Design Cam Follower Geometry Cam to Valve Lift Cam Manufacture Valve Train Analysis 4-Valve Head Layout 2-Valve Head Layout Side Valve Head Layout Piston Crown Valve Pockets Exhaust/Intake Valve & Duct Design Cooling Fins 4stSOFT Links Contact Us FREE Article Downloads	Input and Output graphics from the Duct Design program (back) A screen snapshot of the main input screen A screen snapshot of the main input data requirements A screen snapshot of the input data requirements for Time Area Design Program A screen snapshot of the input and output information for the Intake Duct Design Program A screen snapshot of the input and output information for the Exhaust Duct Design Program
